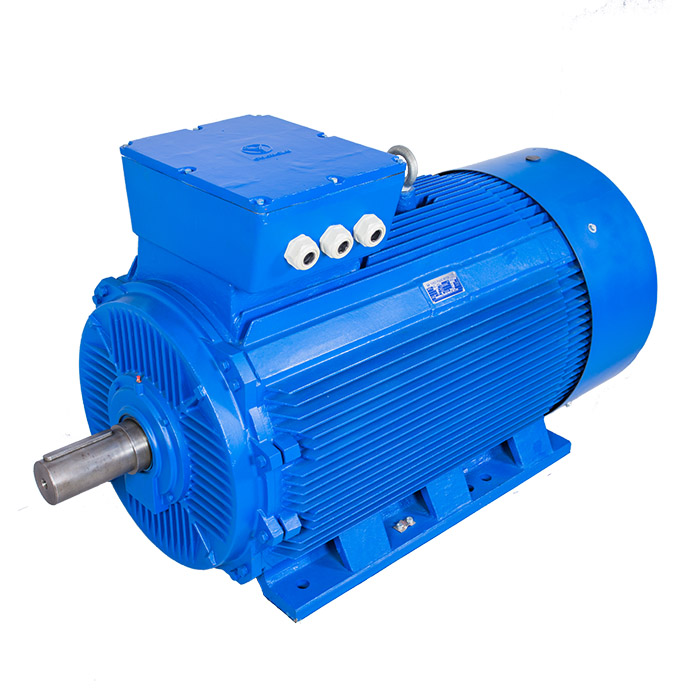

    Y3 series aluminum shell motor
    Time: 2016-11-02 12:58:41 Click: 2473

    Technical parameters:

    TECHNICAL DATA OF Y3 SERIES

    		Franme reference and size Full load current at rated voltage Rated power Full load sreed in revolutions per minute Efficiency Power factor Direct on line starting torque ratio Direct on line starting current ratio Direct on line pull out torque ratio Mean sound pressure level @1m on no load Weight

    Rotor inertia

    WK2

    NO. Type Amps（A） Power Speed EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise Weight J
    380V 400V 415V kW HP r/min % CosΦ LwdB(A) kg kgm2
    1 Y3-80M1-2 1.77 1.74 1.68 0.75 1 2840 75 0.83 2.2 6.1 2.3 67 16 0.00075
    2 Y3-80M2-2 2.61 2.48 2.39 1.1 1.5 2840 76.2 0.84 2.2 6.9 2.3 67 17 0.0009
    3 Y3-90S-2 3.46 3.28 3.16 1.5 2 2850 78.5 0.84 2.2 7 2.3 72 20 0.0012
    4 Y3-90L-2 4.85 4.61 4.45 2.2 3 2855 81 0.85 2.2 7 2.3 72 23 0.0014
    5 Y3-100L-2 6.34 6.03 5.81 3 4 2860 82.6 0.87 2.2 7.5 2.3 76 30 0.0029
    6 Y3-112M-2 8.2 7.79 7.51 4 5.5 2880 84.2 0.88 2.2 7.5 2.3 77 41 0.0055
    7 Y3-132S1-2 11.1 10.53 10.15 5.5 7.5 2900 85.7 0.88 2.2 7.5 2.3 80 57.5 0.0109
    8 Y3-132S2-2 14.9 14.1 13.6 7.5 10 2900 87 0.88 2.2 7.5 2.3 80 60.5 0.0126
    9 Y3-160M1-2 21.2 20.2 19.5 11 15 2930 88.4 0.89 2.2 7.5 2.3 86 107 0.0377
    10 Y3-160M2-2 28.6 27.2 26.2 15 20 2930 89.4 0.89 2.2 7.5 2.3 86 104 0.0499
    11 Y3-160L-2 34.7 33 31.8 18.5 25 2930 90 0.9 2.2 7.5 2.3 86 133 0.055
    12 Y3-180M-2 41 39 37.6 22 30 2940 90.5 0.9 2 7.5 2.3 89 156 0.075
    13 Y3-200L1-2 55.4 52.6 50.7 30 40 2950 91.4 0.9 2 7.5 2.3 92 218 0.124
    14 Y3-200L2-2 67.9 64.5 62.2 37 50 2950 92 0.9 2 7.5 2.3 92 230 0.139
    15 Y3-225M-2 82.1 78 75.2 45 60 2960 92.5 0.9 2 7.5 2.3 92 290 0.233
    16 Y3-250M-2 100 94.8 91.4 55 75 2970 93 0.9 2 7.5 2.3 93 359 0.312
    17 Y3-280S-2 135 129 124 75 100 2975 93.6 0.9 2 7 2.3 94 494 0.579
    18 Y3-280M-2 160 152 147 90 125 2975 93.9 0.91 2 7.1 2.3 94 510 0.675
    19 Y3-315S-2 195 186 179 110 150 2975 94 0.91 1.8 7.1 2.2 96 875 1.18
    20 Y3-315M-2 233 222 214 132 180 2975 94.5 0.91 1.8 7.1 2.2 96 963 1.82
    21 Y3-315L1-2 279 265 256 160 220 2975 94.6 0.92 1.8 7.1 2.2 99 1010 2.08
    22 Y3-315L2-2 348 331 319 200 270 2975 94.8 0.92 1.8 7.1 2.2 99 1138 2.38
    23 Y3-355M-2 433 412 397 250 340 2980 95.2 0.92 1.6 7.1 2.2 103 1900 3
    24 Y3-355L-2 545 518 499 315 430 2980 95.4 0.92 1.6 7.1 2.2 103 2300 3.5
    25 Y3-80M1-4 1.57 1.49 1.44 0.55 0.75 1390 71 0.75 2.4 5.2 2.3 58 15 0.0018
    26 Y3-80M2-4 2.05 1.95 1.88 0.75 1 1390 73 0.76 2.3 6 2.3 58 15.5 0.0021
    27 Y3-90S-4 2.85 2.71 2.61 1.1 1.5 1390 76.2 0.77 2.3 6 2.3 61 19 0.0023
    28 Y3-90L-4 3.72 3.54 3.41 1.5 2 1400 78.5 0.78 2.3 6 2.3 61 23 0.0027
    29 Y3-100L1-4 5.09 4.9 4.72 2.2 3 1410 81 0.81 2.3 7 2.3 64 29 0.0054
    30 Y3-100L2-4 6.78 6.39 6.16 3 4 1410 82.6 0.82 2.3 7 2.3 64 31 0.0067
    31 Y3-112M-4 8.8 8.36 8.06 4 5.5 1435 84.2 0.82 2.3 7 2.3 65 42 0.0095
    32 Y3-132S-4 11.7 11.2 10.8 5.5 7.5 1440 85.7 0.83 2.3 7 2.3 71 52 0.0214
    33 Y3-132M-4 15.6 14.8 14.3 7.5 10 1450 87 0.84 2.3 7 2.3 71 64.5 0.0296
    34 Y3-160M-4 22.5 21.4 20.6 11 15 1460 88.4 0.84 2.2 7 2.3 75 100 0.0747
    35 Y3-160L-4 30 28.5 27.5 15 20 1460 89.4 0.85 2.2 7.5 2.3 75 129 0.0918
    36 Y3-180M-4 36.3 34.5 33.3 18.5 25 1470 90 0.86 2.2 7.5 2.3 76 150 0.139
    37 Y3-180L-4 43.2 40.8 39.3 22 30 1470 90.5 0.86 2.2 7.5 2.3 76 166 0.158
    38 Y3-200L-4 57.6 55.1 53.1 30 40 1470 91.4 0.86 2.2 7.2 2.3 79 228 0.262
    39 Y3-225S-4 70.2 66.7 64.3 37 50 1475 92 0.87 2.2 7.2 2.3 81 268 0.406
    40 Y3-225M-4 84.9 80.7 77.8 45 60 1475 92.5 0.87 2.2 7.2 2.3 81 313 0.469
    41 Y3-250M-4 103 98.1 94.6 55 75 1480 93 0.87 2.2 7.2 2.3 83 366 0.66
    42 Y3-280S-4 138.3 131 127 75 100 1480 93.6 0.88 2.2 6.8 2.3 86 480 1.12
    43 Y3-280M-4 165 157 152 90 125 1480 93.9 0.88 2.2 6.8 2.3 86 560 1.64
    44 Y3-315S-4 201 191 184 110 150 1480 94.5 0.88 2.1 6.9 2.2 93 846 3.1
    45 Y3-315M-4 240 228 220 132 180 1480 94.8 0.88 2.1 6.9 2.2 93 940 3.62
    46 Y3-315L1-4 288 273 264 160 220 1480 94.9 0.89 2.1 6.9 2.2 97 1044 4.13
    47 Y3-315L2-4 360 342 329 200 270 1480 94.9 0.89 2.1 6.9 2.2 97 1162 4.73
    48 Y3-355M-4 443 421 406 250 340 1490 95.2 0.9 2.1 6.9 2.2 101 1700 6.5
    49 Y3-355L-4 559 531 511 315 430 1490 95.2 0.9 2.1 6.9 2.2 101 1900 8.2
    50 Y3-80M1-6 1.3 1.23 1.19 0.37 0.5 880 62 0.7 1.9 4.7 2 54 15 0.0016
    51 Y3-80M2-6 1.8 1.7 1.64 0.55 0.75 880 65 0.72 1.9 4.7 2.1 54 16 0.0019
    52 Y3-90S-6 2.29 2.18 2.1 0.75 1 905 69 0.72 2 5.3 2.1 57 20 0.0029
    53 Y3-90L-6 3.18 3.02 2.91 1.1 1.5 905 72 0.73 2 5.5 2.1 57 23 0.0035
    54 Y3-100L-6 4 3.8 3.66 1.5 2 920 76 0.75 2 5.5 2.1 61 29 0.0069
    55 Y3-112M-6 5.6 5.29 5.1 2.2 3 935 79 0.76 2 6.5 2.1 65 41 0.014
    56 Y3-132S-6 7.4 7.03 6.78 3 4 960 81 0.76 2.1 6.5 2.1 69 59 0.0286
    57 Y3-132M1-6 9.75 9.26 8.93 4 5.5 960 82 0.76 2.1 6.5 2.1 69 66 0.0357
    58 Y3-132M2-6 12.9 12.3 11.8 5.5 7.5 960 84 0.77 2.1 6.5 2.1 69 76.5 0.0449
    59 Y3-160M-6 17.2 16.3 15.8 7.5 10 970 86 0.77 2 6.5 2.1 73 106 0.081
    60 Y3-160L-6 24.5 23.3 22.4 11 15 970 87.5 0.78 2 6.5 2.1 73 122 0.116
    61 Y3-180L-6 31.6 30 28.9 15 20 970 89 0.81 2 7 2.1 73 154 0.207
    62 Y3-200L1-6 38.6 36.6 35.3 18.5 25 980 90 0.81 2.1 7 2.1 76 202 0.315
    63 Y3-200L2-6 44.7 42.5 41 22 30 980 90 0.83 2 7 2.1 76 216 0.36
    64 Y3-225M-6 59.3 56.3 54.3 30 40 980 91.5 0.84 2 7 2.1 76 287 0.547
    65 Y3-250M-6 71 67.5 65.1 37 50 980 92 0.86 2.1 7 2.1 78 355 0.843
    66 Y3-280S-6 86 81.7 78.1 45 60 980 92.5 0.86 2.1 7 2 80 444 1.39
    67 Y3-280M-6 104 99.5 95.9 55 75 980 92.8 0.86 2.1 7 2 80 498 1.65
    68 Y3-315S-6 142 135 130 75 100 985 93.5 0.86 2 6.7 2 85 859 4.11
    69 Y3-315M-6 169 161 155 90 125 985 93.8 0.86 2 6.7 2 85 950 4.78
    70 Y3-315L1-6 207 196 189 110 150 985 94 0.86 2 6.7 2 85 1031 5.45
    71 Y3-315L2-6 245 232 224 132 180 985 94.2 0.87 2 6.7 2 85 1107 6.12
    72 Y3-355M1-6 292 278 268 160 220 990 94.5 0.88 1.9 6.7 2 92 1550 9.5
    73 Y3-355M2-6 365 347 335 200 270 990 94.5 0.88 1.9 6.7 2 92 1600 10.4
    74 Y3-355L-6 457 434 418 250 340 990 94.5 0.88 1.9 6.7 2 92 1700 12.4
    75 Y3-80M1-8 0.83 0.84 0.8 0.18 0.25 645 51 0.61 1.8 3.3 1.9 52 15 0.0025
    76 Y3-80M2-8 1.1 1.1 1.06 0.25 0.34 645 54 0.61 1.8 3.3 1.9 52 16 0.003
    77 Y3-90S-8 1.49 1.41 1.36 0.37 0.5 675 62 0.61 1.8 4 1.9 56 20 0.0051
    78 Y3-90L-8 2.17 2.07 1.99 0.55 0.75 680 63 0.61 1.8 4 2 56 23 0.0065
    79 Y3-100L1-8 2.43 2.31 2.22 0.75 1 680 70 0.67 1.8 4 2 59 29 0.009
    80 Y3-100L2-8 3.36 3.2 3.08 1.1 1.5 680 72 0.69 1.6 5 2 59 31 0.011
    81 Y3-112M-8 4.4 4.18 4.03 1.5 2 690 74 0.7 1.8 5 2 61 41 0.0245
    82 Y3-132S-8 6 5.66 5.46 2.2 3 710 79 0.71 1.8 6 2 64 61 0.0314
    83 Y3-132M-8 7.8 7.41 7.15 3 4 710 80 0.73 1.8 6 2 64 74 0.0395
    84 Y3-160M1-8 10.3 9.76 9.41 4 5.5 720 81 0.73 1.9 6 2 68 95.5 0.0753
    85 Y3-160M2-8 13.6 12.9 12.5 5.5 7.5 720 83 0.74 1.9 6 2 68 107 0.0931
    86 Y3-160L-8 17.8 16.9 16.3 7.5 10 720 85.5 0.75 1.9 6 2 68 128 0.126
    87 Y3-180L-8 25.5 24.2 23.3 11 15 730 87.5 0.75 2 6.5 2 70 169 0.203
    88 Y3-200L-8 34.1 32.4 31.2 15 20 730 88 0.76 2 6.6 2 73 236 0.339
    89 Y3-225S-8 41.1 39 37.6 18.5 25 730 90 0.76 1.9 6.6 2 73 274 0.491
    90 Y3-225M-8 48.9 45 43.4 22 30 730 90.5 0.78 1.9 6.6 2 73 290 0.547
    91 Y3-250M-8 63 60.2 58.1 30 40 735 91 0.79 1.9 6.5 2 75 370 0.834
    92 Y3-280S-8 78 73.9 71.2 37 50 740 91.5 0.79 1.9 6.6 2 76 488 1.65
    93 Y3-280M-8 94 89.4 86.1 45 60 740 92 0.79 1.9 6.6 2 76 563 1.93
    94 Y3-315S-8 111 106 102 55 75 735 92.8 0.81 1.8 6.6 2 82 852 4.79
    95 Y3-315M-8 150 143 138 75 100 735 93.5 0.81 1.8 6.2 2 82 933 5.58
    96 Y3-315L1-8 178 169 163 90 125 735 93.8 0.82 1.8 6.4 2 82 1027 6.37
    97 Y3-315L2-8 217 206 199 110 150 735 94 0.82 1.8 6.4 2 82 1117 7.23
    98 Y3-355M1-8 261 248 239 132 180 740 93.7 0.82 1.8 6.4 2 90 2000 7.9
    99 Y3-355M2-8 315 299 288 160 220 740 94.2 0.82 1.8 6.4 2 90 2150 10.3
    100 Y3-355L-8 387 368 355 200 270 740 94.5 0.83 1.8 6.4 2 90 2250 12.3
    101 Y3-100L1-10 1.33 1.26 1.22 0.25 0.34 530 55 0.52 1.2 3.2 1.7 59 29 0.0057
    102 Y3-100L2-10 1.89 1.8 1.73 0.37 0.5 530 56 0.53 1.2 3.2 1.7 59 31 0.0073
    103 Y3-112M1-10 2.5 2.37 2.29 0.55 0.75 540 62 0.54 1.2 3.4 1.7 61 41 0.0101
    104 Y3-112M2-10 3.3 3.12 3.01 0.75 1 540 63 0.55 1.2 3.4 1.7 61 43 0.0123
    105 Y3-132S-10 4.4 4.2 4 1.1 1.5 550 69 0.55 1.2 3.6 1.7 64 60 0.0274
    106 Y3-132M-10 5.7 5.5 5.2 1.5 2 565 71 0.56 1.2 3.6 1.7 64 68.5 0.0351
    107 Y3-160M1-10 7.7 7.3 7.1 2.2 3 575 76 0.57 1.3 4 1.8 68 108 0.0442
    108 Y3-160M2-10 10.2 9.7 9.4 3 4 575 77 0.58 1.3 4 1.8 68 115 0.0842
    109 Y3-180M-10 12.2 11.5 11.1 4 5.5 580 82 0.61 1.3 4 1.8 70 164 0.1041
    110 Y3-180L-10 16.2 15.4 14.9 5.5 7.5 580 83 0.62 1.3 4 1.8 70 180 0.1409
    111 Y3-200L1-10 20.6 19.5 18.8 7.5 10 580 84 0.66 1.3 4.5 1.8 73 219 0.227
    112 Y3-200L2-10 30 28.5 27.5 11 15 580 84.5 0.66 1.3 4.5 1.8 73 230 0.379
    113 Y3-225M1-10 39.2 37.2 35.9 15 20 580 85.5 0.68 1.3 4.5 1.8 73 302 0.5489
    114 Y3-225M2-10 48.1 45.7 44.1 18.5 25 580 86 0.68 1.3 4.5 1.8 73 312 0.6115
    115 Y3-280S-10 49.9 47.4 45.7 22 30 585 90.5 0.74 1.5 5.2 2 76 495 0.9324
    116 Y3-280M1-10 67.7 64.3 62 30 40 585 91 0.74 1.5 5.2 2 76 531 1.8447
    117 Y3-280M2-10 83.5 79.3 76.5 37 50 585 91 0.74 1.5 5.2 2 76 560 2.1577
    118 Y3-315S-10 100 95 91 45 60 590 91.5 0.75 1.5 6.2 2 82 852 5.3552
    119 Y3-315M-10 121 115 111 55 75 590 92 0.75 1.5 6.2 2 82 903 6.2384
    120 Y3-315L1-10 162 154 148 75 100 590 92.5 0.76 1.5 5.8 2 82 1007 7.1217
    121 Y3-315L2-10 191 181 175 90 125 590 93 0.77 1.5 5.9 2 82 1100 8.0831
    122 Y3-355M1-10 230 218 211 110 150 590 93.2 0.78 1.3 6 2 90 1800 10.176
    123 Y3-355M2-10 275 261 252 132 180 590 93.5 0.78 1.3 6 2 90 2000 11.5154
    124 Y3-355L-10 334 317 305 160 220 590 93.5 0.78 1.3 6 2 90 2500 13.7514
    125 Y3-100L1-12 1.55 1.47 1.42 0.25 0.34 420 50 0.49 1.1 2.8 1.7 59 30 0.0074
    126 Y3-100L2-12 2.21 2.1 2.02 0.37 0.5 425 52 0.49 1.1 2.8 1.7 59 32 0.0103
    127 Y3-112M1-12 3.01 2.84 2.74 0.55 0.75 435 57 0.49 1.1 3.2 1.7 61 43 0.0126
    128 Y3-132S1-12 3.6 3.4 3.3 0.75 1 440 63 0.5 1.1 3.4 1.7 61 58 0.028
    129 Y3-132S2-12 5.1 4.9 4.7 1.1 1.5 450 65 0.5 1.1 3.4 1.7 64 63.5 0.0359
    130 Y3-132M-12 6.7 6.3 6.1 1.5 2 460 68 0.5 1.1 3.5 1.7 64 74 0.0452
    131 Y3-160M-12 9 8.5 8.2 2.2 3 465 74 0.5 1.1 4 1.8 68 111 0.0861
    132 Y3-160L-12 12.2 11.6 11.2 3 4 470 74.5 0.5 1.1 4 1.8 68 132 0.1065
    133 Y3-180L1-12 14.1 13.4 12.9 4 5.5 470 78 0.55 1.2 4 1.8 70 176 0.1441
    134 Y3-180L2-12 18.5 17.6 16.9 5.5 7.5 475 79 0.57 1.2 4 1.8 70 183 0.2322
    135 Y3-200L1-12 24.2 23 22.2 7.5 10 475 81 0.58 1.2 4.5 1.8 73 227 0.3877
    136 Y3-225M1-12 33.1 31.5 30.3 11 15 480 84 0.6 1.2 4.5 1.8 73 302 0.5616
    137 Y3-225M2-12 44.7 42.4 40.9 15 20 480 85 0.6 1.2 4.5 1.8 73 318 0.6256
    138 Y3-250M-12 53 50.3 48.5 18.5 25 480 85.5 0.62 1.2 4.5 1.8 73 379 0.9539
    139 Y3-280S-12 60 57 55 22 30 485 87 0.64 1.2 4.5 1.8 76 498 1.8871
    140 Y3-280M-12 80.1 76.1 73.3 30 40 485 87.5 0.65 1.2 4.5 1.8 76 512 2.2074
    141 Y3-315S-12 93.2 88.5 85.3 37 50 485 90 0.67 1.2 4.5 1.5 76 865 5.4784
    142 Y3-315M-12 112.8 107.1 103.2 45 60 485 90.5 0.67 1.2 4.5 1.5 82 956 6.3819
    143 Y3-315L1-12 137.3 130.5 125.8 55 75 485 90.8 0.67 1.2 4.5 1.5 82 1023 7.2855
    144 Y3-315L2-12 186.9 177.6 171.1 75 100 485 91 0.67 1.2 4.5 1.5 82 1142 8.2691
    145 Y3-355M1-12 212.3 201.7 194.4 90 125 490 92 0.7 1.2 4.5 1.7 82 1800 10.41
    146 Y3-355M2-12 258.4 245.4 236.6 110 150 490 92.4 0.7 1.2 4.5 1.7 90 1920 11.7803
    147 Y3-355L-12 309.4 293.9 283.3 132 180 490 92.6 0.7 1.2 4.5 1.7 90 2300 14.0677
    148 Y3-112M1-16 1.52 1.44 1.39 0.25 0.34 310 48 0.47 0.9 2.5 1.6 61 38 0.0285
    149 Y3-112M2-16 2.34 2.22 2.14 0.37 0.5 315 48.5 0.47 0.9 2.5 1.6 64 45 0.0366
    150 Y3-132M-16 3.2 3 2.9 0.55 0.75 330 54 0.48 0.9 2.7 1.6 64 75 0.046
    151 Y3-160M1-16 3.8 3.6 3.4 0.75 1 340 62 0.48 0.9 2.8 1.6 68 96.5 0.0877
    152 Y3-160M2-16 5.4 5.1 4.9 1.1 1.5 345 64 0.48 0.9 2.8 1.6 68 108 0.1084
    153 Y3-160L-16 7.1 6.7 6.5 1.5 2 345 66 0.48 0.9 2.8 1.6 70 127 0.1467
    154 Y3-180M-16 9.4 8.9 8.6 2.2 3 350 71.5 0.49 0.9 3.2 1.6 70 156 0.2364
    155 Y3-180L-16 12.8 12.1 11.7 3 4 355 72 0.49 0.9 3.2 1.6 73 168 0.3948
    156 Y3-200L1-16 16.4 15.6 15 4 5.5 355 74 0.5 0.9 3.2 1.6 73 237 0.5718
    157 Y3-200L2-16 22.1 21 20.2 5.5 7.5 355 75 0.5 0.9 3.2 1.6 73 248 0.637
    158 Y3-225S-16 28.4 26.9 26 7.5 10 360 78 0.51 0.9 3.5 1.6 73 274 0.9712
    159 Y3-250M-16 39.4 37.4 35.7 11 15 360 80 0.53 0.9 3.5 1.6 76 368 1.9215
    160 Y3-280M-16 49.8 47.3 45.6 15 20 360 82 0.55 1 3.5 1.6 76 552 2.2475
    161 Y3-315S-16 57.6 54.7 52.7 18.5 25 365 86 0.56 1 3.5 1.6 76 855 5.5781
    162 Y3-315M-16 68.1 64.6 62.3 22 30 365 87 0.56 1 3.5 1.6 82 936 6.4981
    163 Y3-315L1-16 91.7 87.1 83.9 30 40 365 88 0.56 1 3.5 1.6 82 1037 7.4181
    164 Y3-315L2-16 112 106 102 37 50 365 88 0.56 1 3.5 1.6 82 1120 8.4195
    Copyright © 2024 TAIZHOU TUOJIE ELECTROMOTOR CO.,LTD 技术支持：诚世网络 浙ICP备2023000634号-1拓界企业邮箱登录
